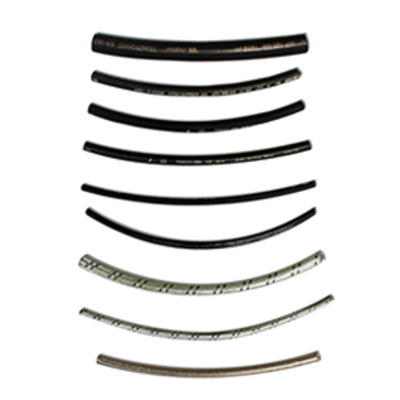

Hydraulic hoses for medium pressure

Balkankar Ruen JSC uses in its production high quality hoses in a wide range of diameters, length and operating pressure of leading companies worldwide. All hoses respond to all modern requirements for high abrasion resistance, temperature effects, flexibility, compactness and are in compliance with the international quality standards SAE, DIN, EN, ISO.

As a leading factory in the industry sector we produce flexible compounds based on these types of hoses: Low pressure 40 - 130bar, medium pressure 90 - 350bar and high pressure 300 - 450bar. Rubber hoses are in textile and steel braids, temperature resistant - Teflon hoses to 200ºC and special hoses - compact, with excellent resistance to pressure and friction - 200 - 300bar (single and paired). The working fluid is, fuels, oils, coolants, industrial gases, air and others.

Hydraulic hoses for medium pressure:

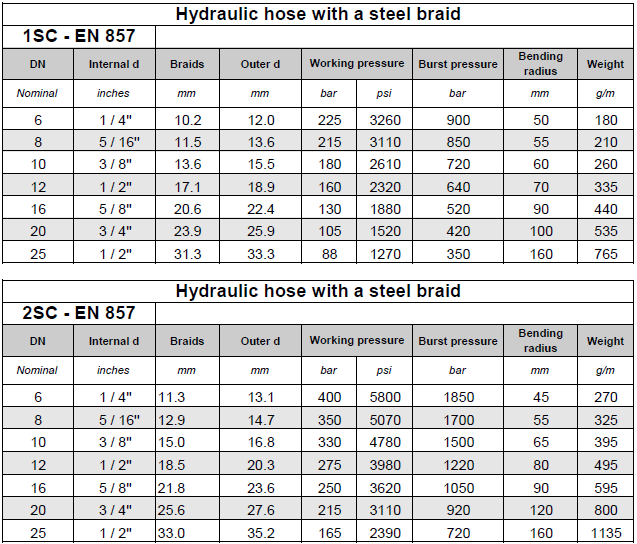

1SC - EN 857

• Inner layer - oil resistant synthetic rubber
• Reinforcement- a high-strength steel wire braid
• Outer layer - Synthetic rubber resistant to abrasion and weathering
• Application - in hydraulic systems with medium pressure for industry, engineering, agriculture and others
• Temperature regime - from - 40ºС to +100ºС
• Fluids - mineral and synthetic oils, oil-based glucose and polyglucose, synthetic esters, water, and aqueous emulsions
• Standards - EN 857 1SС
• Special features: high flexibility, a very small bending radius, minimum weight

2SC - EN 857

• Inner layer - oil resistant synthetic rubber
• Reinforcement- a high-strength two steel wire braid
• Outer layer - Synthetic rubber resistant to abrasion and weathering
• Application - in hydraulic systems with medium pressure for industry, engineering, agriculture and others
• Temperature regime - from - 40ºС to +100ºС
• Fluids - mineral and synthetic oils, oil-based glucose and polyglucose, synthetic esters, water, and aqueous emulsions
• Standards - EN 857 2SС
• Special features: high flexibility, a very small bending radius, minimum weight

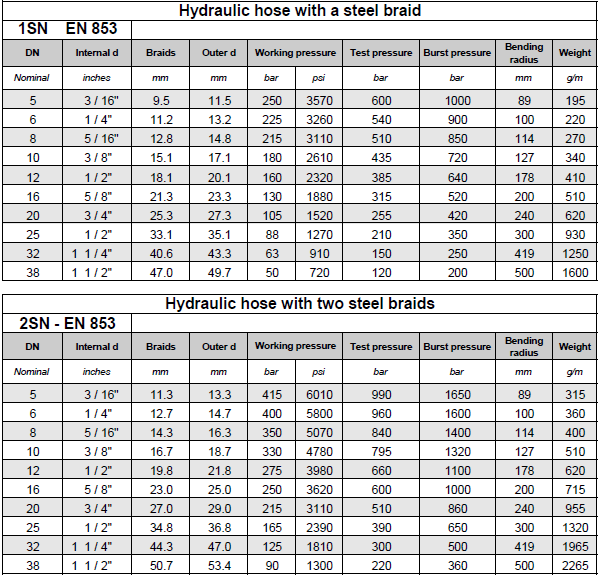

1SN - EN 853

• Inner layer - oil resistant synthetic rubber
• Armature - A steel braid
• Outer layer - Synthetic rubber resistant to abrasion and weathering
• Application - in hydraulic systems with medium pressure for industry, engineering, agriculture and others
• Temperature regime - from - 40ºС to +100ºС
• Fluids - mineral and synthetic oils, oil-based glucose and polyglucose, synthetic esters, water, and aqueous emulsions
• Standards - EN 853 1SN, SAE 100R1AT, ISO 1436-1 1SN/R1AT

2SN - EN 853

• Inner layer - oil resistant synthetic rubber
• Reinforcement- two steel braids
• Outer layer - Synthetic rubber resistant to abrasion and weathering
• Application - in hydraulic systems with medium pressure for industry, engineering, agriculture and others
• Temperature regime - from - 40ºС to +100ºС
• Fluids - mineral and synthetic oils, oil-based glucose and polyglucose, synthetic esters, water, and aqueous emulsions
• Standards - EN 853 2SN, SAE 100R2AT, ISO 1436-1 2SN/R2AT
